Imaging and video applications get right-sized using PC/104
Smaller, lighter, lower power
If you’re looking for smaller and lighter, check out the Lion rugged PC/104 single-board computer from VersaLogic (Tigard, OR). It combines powerful CPU and video processing capability for a low power draw and the PCIe/104 OneBank expansion for high-performance systems that are smaller, lighter, and more energy efficient. Its dual mini DisplayPort video outputs support two independent, simultaneous displays including Extended Desktop and Clone modes. Intel’s advanced HD Graphics 620 core compute architecture, 24 execution units, and GPU Turbo Boost contain on-board hardware acceleration for encode / decode of JPEG, MJPEG, MPEG2, AVC, MVC, HEVC 8-bit, VP8, VP9 and other standards. The graphics engine also supports DirectX 12, Open GL 4.4, Open CL 2.0, full HD video playback, and resolution up to 2560 x 1600 @ 60Hz. It is available in Core i3, Core i5, and Core i7 processor options.

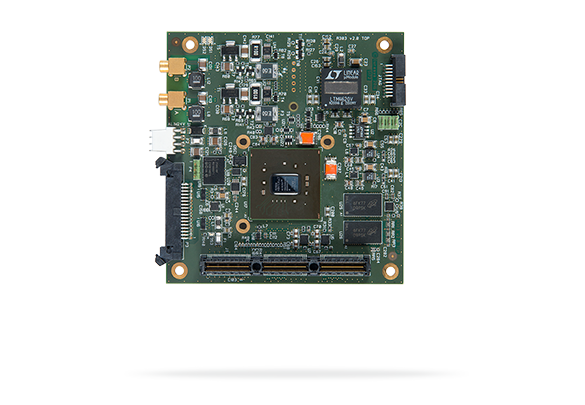

[VersaLogic Lion SBC]The Coaxlink Duo PCIe/104 from Euresys (Liége, Belgium) is a ruggedized, stackable, PCIe/104-compliant card that provides two CoaXPress CXP-6 camera connections and a PCIe 2.0 (Gen 2) x4 bus. It has an extended temperature range of -40 to +85°C with conduction cooling. It features a ruggedized COTS board and relies on the CoaXPress standard to provide a high-speed interface between the camera and the frame grabber. In its simplest form, CoaXPress uses a single coaxial cable to transmit data at up to 625 MB/s, simultaneously transmitting control data and triggers and providing up to 13W of power to the camera. The company’s CoaXPress outdoor cameras are designed for demanding applications in defense and high-end surveillance applications.
[Euresys Coaxlink Duo PCIe/104]Seeing double The oi110 dual camera link from Sundance Technology (Buckinghamshire, UK) combines a dual-lane CameraLink camera interface card and the EMC²-DP PCIe/104 OneBank carrier card on a PC/104 form-factor. The combination provides a dual-vision interface to a range of applications and can be controlled by a host controller or run in stand-alone mode. The integrated Xilinx FPGA lets any CameraLink format be connected to it, and additional SATA-3 expansions allow connection to large storage for future processing. It is compatible with PCIe/104 OneBank, Type 1, or Type 2, as well as PCI Express Gen 2, and can integrate a PCI Express switch. It supports power over CameraLink and operates at a data rate up to 85 MHz.
[Sundance oi110]For even greater performance, Sundance’s oi115 combines HDMI In/Out module and the EMC²-DP carrier card. It can be coupled with the user’s choice of FPGA module, suiting the particular application. It includes the FMC-IMAGEON HDMI I/O FMC module, provides an interface for ON Semiconductor VITA image sensor modules, and has a video clock synthesizer. It acts as a PCIe/104 OneBank carrier for Trenz SoC modules. It is compatible with PCI Express Gen 2 and can integrate a PCI Express switch, and includes a cable-less breakout PCB connector.
[Sundance oi115]If your needs include standard or high-definition video, you may want to check out the oi111 from Sundance. It’s an air-cooled PCIe/104 OneBank and used for standard-definition and high-definition video processing in combination with I/O and control applications. The front panel contains two HD-BNC connectors as primary video interface and a high-density connector for secondary video and I/O interfaces. It supports SDI digital video and PAL\NTSC analog video, with different order options for the specific primary and secondary video configurations. The -AD option has an analog video input and a SDI video output on the two front panel HD-BNC connectors, allowing SD to HD up-scaling, combined with user specific video processing. The high-density connector provides RS422, RS485, CAN and discrete I/O interfaces.
[Sundance oi111]Hot or cold is no issue The SK220, a PCIe/104 carrier module from Perfectron (New Tapei City, Taiwan) can is offer up to six independent displays by MXM interface under extended temperature from -40°C to ~ 85°C. It is equipped with 6 x miniDP, 1 x VGA (2 x 5 pin header) which can support most MXM graphic cards from NVIDIA and AMD. It can switch the signals between FPE connectors via dip switch, making it useful for multi-graphic processors in demand applications such as a mission control room, or in 19-inch rack-mount multi-node rugged servers. It uses PCIe x16 and PCIe x4, x1 link. It provides support for MXM 3.0 and 3.1 and Type A and Type B graphics cards.
[Perfectron SK220]If multiple displays are required, the SK210-GT730M from Perfectron should suit your needs. It’s a high-end PCIe/104 graphic module featuring a NVIDIA GPU GT730M, which provides GPU clock up to 719 MHz. It has CUDA 384 cores and supports four independent display ports output--up to three at full 1080P HD. Equipped with 1024 MB of DDR3 memory and a 64-bit memory interface, it can provide advanced graphic computing for multi-display, high-end graphic applications such as central room signage, high-end digital signage, navigation, defense and more. It uses PCIe x8 and x4 links, and supports OpenGL 4.4, OCL 1.1, and Microsoft DirectX 11.
[Perfectron SK210-GT730M]Desktop-level graphics in a PCIe/104 form factor Connect Tech’s Xtreme/GPU provides desktop-level graphics, multimedia features, and GPU processing power in a PCIe/104 form factor, and gives users the ability to select either AMD or NVIDIA graphics. The AMD version can drive up to four Mini DisplayPort connections for independent use, or it can work with AMD Eyefinity technology as a single large surface. On-board passive circuitry allows for the use of Dual-Mode DisplayPort, enabling the use of DVI or HDMI dongles. The NVIDIA version gives the GPU access to NVIDIA CUDA cores, turning it into a parallel computational CPU for non-graphical applications. It is compatible with PCIe x1 up or down stack and x16 down stack, with x16 up stack optionally available. It supports OpenGL/OpenCL and Microsoft DirectX 11.
[ConnectTech Xtreme/GPU]The Model 953-ET encoder/decoder from Sensoray (Tigard, OR) is a PCIe/104 full duplex audio/video codec that can simultaneously capture four analog video and four stereo audio inputs. Each of its four identical channels captures NTSC/PAL video at up to full frame rate and encodes it to H.264, MJPEG, or MPEG-4, while capturing and encoding audio to G.711 or AAC. In addition, a low-latency uncompressed video stream is available for high performance previewing on the host computer. Several stream formats are supported: MPEG-TS, MP4, AVI, and elementary. Each channel can also receive streams from the host, decode compressed streams and output the resulting analog audio/video. Overlay generators can position up to 160 characters of text anywhere in the video frame.
[Sensoray 935-ET encoder/decoder]Frame grabbers must adhere to lots of standards, and that’s just the case with the Model 911 frame grabber from Sensoray. It’s a PCI/104-Express board that simultaneously captures four channels of analog video and four channels of stereo audio. It captures raw video frames from each channel at up to full frame rate, resulting in an aggregate frame capture rate of up to 120 fps for NTSC and 100 fps for PAL. The high capture rate and a high-performance bus interface, makes it useable for applications that require capturing of multiple video sources in a compact form factor. Each video input may be connected to a composite or S-video source. Supported video capture resolutions include D1, VGA, QVGA, QQVGA, SIF, 2SIF, 4SIF, CIF, QCIF, SQCIF, and 4CIF. Captured frames are formatted as raw RGB or YUV.
[Sensoray 911 frame grabber]
